K12 Preamp

The A and T Labs preamp was designed to achieve several key goals:

  • Clean, long life, reliable source switching
  • Electronically controlled, non-deteriorating volume control
  • Impeccable sonic performance and low noise and cross talk

To achieve them, the preamp incorporates these features:

  • 8 inputs MM phono, Tuner, CD1, CD2, Tape1, Tape2, Aux1, Aux2
  • 4 record outputs with monitor select for CD2, Tape1, Tape2, Aux1
  • Gold dual contact sealed relay source selection
  • Front panel headphone output
  • Front panel 1/8th inch appearance of Aux1, for an IPOD or similar device
  • Optical encoder volume/balance control
  • PIC microprocessor control
  • Bypass-able bass and treble controls
  • Mute
  • 2 sets of controlled outputs to amplifiers
  • Ground plane main/audio PCB for low noise and crosstalk
  • 2 power switched 5 volt outputs to drive relay controlled power strips for system components

The following are available from A and T Labs:

  • Printed circuit boards for main board, control board, and LED display board

  • Programmed micro-controller

FAX (or mail) your order, using our FAX Order Sheet



Ordering Information

Click to enlarge Item Description Weight Price


K12PCB1 Main printed circuit board 2 oz. $69

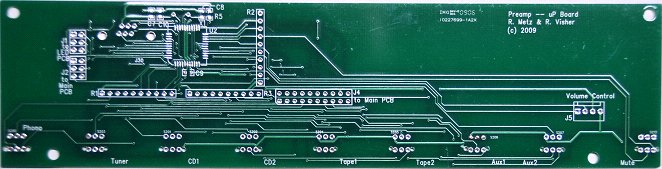

K12PCB3 Control printed circuit board 16 oz. $15

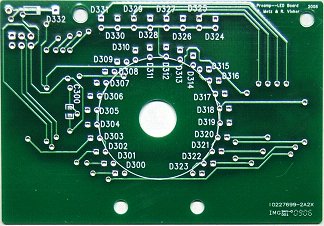

LEDPCB.jpg (29668 bytes) K12PCB2 LED display printed circuit board 2 oz. $11
  K12PIC Programmed PIC microcontroller 1 oz. $15
