Some photos (click photo for a larger view):


Front View



With cables attached


Much of the above documentation is in Adobe's PDF format.  You can get a free copy of the Acrobat Reader here:

M-2 Air-Fuel Mixture Analyzer

The M-2 air-fuel mixture analyzer is a fast, wideband design that responds to changes in mixture with a response time of 1/8th of a second! It presents an accurate measure from 10:1 to 22:1, with a highlighted breakpoint, where the indicator LED's change color at the stoichiometric mixture. Extremely easy to read bar graph that requires minimal attention to detect the perfect mixture - readable at a glance!.

This precision instrument is a must for motor enthusiasts who tune to perfection or want to know exactly what their mixture is doing. Also enables tuning to best economy. Much more useful than typical "narrow band" units on the market, which are accurate only at the center of their range.

Includes self-test/calibration check function and fast response oxygen sensor probe. Output signal available for logging also.

FAX (or mail) your order, using our FAX Order Sheet


Ordering Information

Click to enlarge Item Description Weight Price



Oxygen Analyzer with power cable and Oxygen Sensor

  16 oz.



M-2 Oxygen Analyzer with power cable only   14 oz.

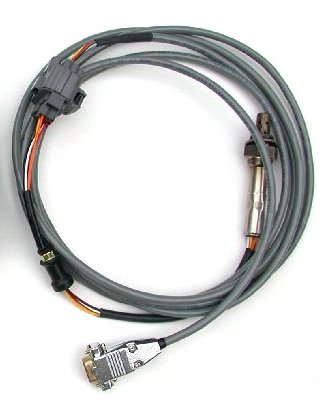

Oxygen Sensor with cable

  2 oz.
